DIANNA Worker (Kubernetes)🔗

The DIANNA worker integrates DSX-Connect with the Deep Instinct Management Console. When enabled, it forwards relevant scan events for additional analysis and policy-driven actions.

This feature is optional and not required for core DSX-Connect operation.

When to Enable DIANNA🔗

Enable the DIANNA worker when:

  • You want DSX-Connect scan results analyzed by Deep Instinct management
  • You require centralized malicious verdict handling
  • You want automated actions based on DI analysis

You can leave it disabled when:

  • Running standalone DSX-Connect deployments
  • Performing local development or testing
  • DI integration is not required

Requirements🔗

To enable DIANNA:

  1. Set dsx-connect-dianna-worker.enabled=true

  2. Create a Kubernetes Secret containing:

    • Deep Instinct API token
    • Deep Instinct management console URL

Step 1: Create the DIANNA API Secret🔗

The Helm chart includes an example at:

examples/secrets/dianna-api-secret.yaml

Template:

apiVersion: v1
kind: Secret
metadata:
  name: dianna-api
  namespace: dsx-connect
type: Opaque
stringData:
  apiToken: "<DIANNA-API-token>"
  managementUrl: "<your DI console>.deepinstinctweb.com"

Required Fields🔗

  • apiToken — API token generated from the Deep Instinct Management Console (DIANNA user)
  • managementUrl — Your Deep Instinct console hostname (without protocol)

Example:

apiVersion: v1
kind: Secret
metadata:
  name: dianna-api
  namespace: dsx-connect
type: Opaque
stringData:
  apiToken: "REPLACE_WITH_DI_TOKEN"
  managementUrl: "your-tenant.deepinstinctweb.com"

Apply:

kubectl apply -f examples/secrets/dianna-api-secret.yaml

Using a Different Secret Name🔗

If you use a custom Secret name, configure:

dsx-connect-dianna-worker:
  dianna:
    secretName: my-dianna-secret

If not set, the chart defaults to dianna-api.

Step 2: Enable the DIANNA Worker in Helm🔗

Command-Line Override🔗

helm upgrade --install dsx -n dsx-connect \
  oci://registry-1.docker.io/dsxconnect/dsx-connect-chart \
  --set dsx-connect-dianna-worker.enabled=true

dsx-connect-dianna-worker:
  enabled: true

Deploy:

helm upgrade --install dsx . -n dsx-connect -f my-values.yaml

Optional DIANNA Configuration🔗

The dianna section allows additional tuning.

Example:

dsx-connect-dianna-worker:
  dianna:
    verifyTls: true
    chunkSize: 4194304
    timeout: 60
    autoOnMalicious: false
    pollResultsEnabled: true
    pollIntervalSeconds: 5
    pollTimeoutSeconds: 900

Common Options🔗

Setting Description Default
verifyTls Verify TLS certificate of DI console true
caBundle Custom CA bundle (if DI console uses internal CA) unset
chunkSize Upload chunk size for large files 4194304
timeout API timeout in seconds 60
autoOnMalicious Automatically trigger configured action on malicious verdict false
pollResultsEnabled Poll DI for result completion true
pollIntervalSeconds Poll interval 5
pollTimeoutSeconds Max poll duration 900

Only override these if your deployment requires tuning.

Verifying Deployment🔗

After enabling DIANNA:

kubectl get pods -n dsx-connect

You should see a pod similar to:

dsx-dsx-connect-dianna-worker-xxxxx   1/1   Running

Check logs:

kubectl logs -n dsx-connect deploy/dsx-dsx-connect-dianna-worker

Look for successful authentication and DI connectivity messages.

Troubleshooting🔗

DIANNA worker pod crashloops🔗

Check:

  • Secret exists in the correct namespace
  • Secret name matches configuration
  • apiToken and managementUrl keys are present
  • Token is valid and not expired

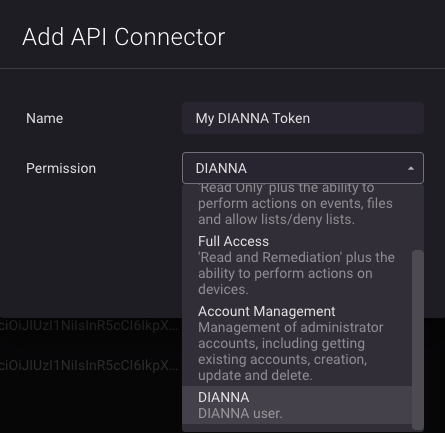

Adding DIANNA Token Figure: Adding DIANNA Token

Verify Secret:

kubectl get secret -n dsx-connect dianna-api

TLS verification errors🔗

If using a private or internal CA:

  • Set verifyTls: true
  • Provide a CA bundle via caBundle
  • Ensure certificate chain is valid

API authentication failures🔗

Confirm:

  • DI token was generated for a DIANNA user
  • Token permissions are sufficient
  • Management URL is correct
